Use innovative technology to redefine environmental protection and make the green environment more sustainable
Model :
HF Series
HowGood Design Concept
HowGood In recent years, it has invested in the research and development of oil mist recovery air purifiers, hired a professional design team to station, and took the three concepts of environmental protection, energy saving and purification as the design goals.
Environmental protection:
The front end is a non-stiff steel washable buffer oil air separator, which can completely separate water, oil and oil and oil for reuse, and reduce the waste of cutting oil by more than 97%.
Energy conservation:
Using a high-efficiency penetrating impeller design, it operates with a low-power high-efficiency motor to improve the power-saving effect and save energy with small horsepower and large air suction volume
Cleanse:

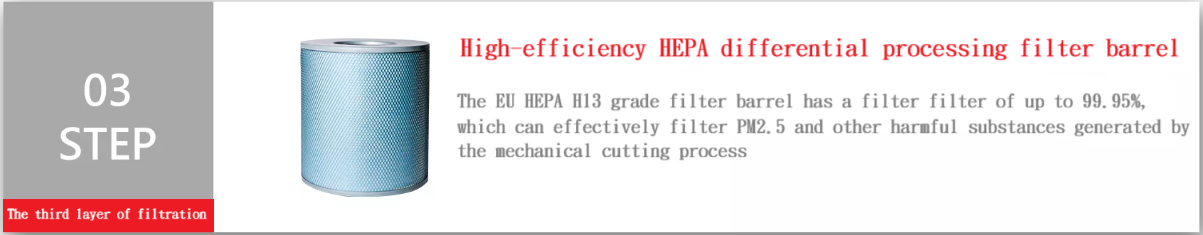

The back-end uses high-performance HEPA differential design filtration, so that the small molecule oil and gas odor in the processing can be completely intercepted and filtered, and the effect of clean air in the processing cabin and working environment is improved.
- The purification effect of oil mist recovery is as high as 99.95%, which can reach the EU HEPA H13 level.
- Small horsepower, large air volume, low agitation, low agricultural movement, more energy-saving.

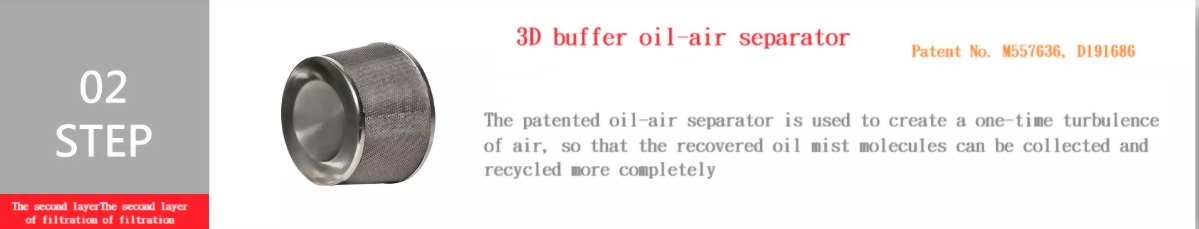

- Using the patented design principle of 3D buffer oil-air separator, it can effectively separate 97% of the oil and water mist, and recover the processing lubrication and cutting oil can be used directly without further filtration.
- The unique permeable impeller structure has high-speed cyclone characteristics, showing super suction and centrifugal force to achieve the best air volume performance.

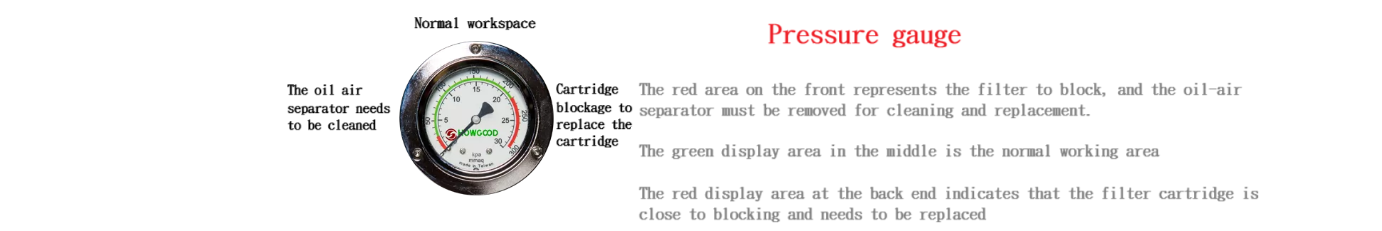

- An oil mist indicator is included to let the user know when it is time to clean the filter and the correct time to replace the cartridge.
Focus on quality, strive for excellence, just for the perfect presentation
- Passed ISO 9001:2015 certification, strict control of every detail, quality assurance.
- Won a number of patents, focusing on the improvement of product performance and energy-saving performance, and strive to present the high cost performance of products.
|
型號
(Model) |
電源
(Voltage) |
馬力
(Kw) |
風量
(m/min) |
靜壓值
(kpa) |
噪音值
分貝(db) |
吸入口徑 |
過濾空間 |
重量
(Kg) |
過濾效果 |
|
(50Hz / 60Hz) |
|||||||||
|
HF-16H |
三相
AC380V
或
AC220V
50/60HZ |
0.2 |
13/16.5 |
0.95/1.19 |
63/66 |
Ø150 |
≤11m3 |
41 |
99.95%
歐盟
H13等級 |
|
HF-22H |
0.4 |
19/23.5 |
1.26/1.58 |
64/67 |
Ø150 |
≤16m3 |
46 |
||
|
HF33H |
0.75 |
28/35.5 |
/.69/2.12 |
67/71 |
Ø198 |
≤24m3 |
65 |
||
|
HF-45H |
1.13 |
39/48.5 |
2.21/2.77 |
68/73 |
Ø250 |
≤36m3 |
73 |
||
|
型號
(Model) |
A |
B |
C |
D |
D1 |
E |
F |
G |
H |
I |
J |
K |
L |
|
HF-16H |
598 |
360 |
422 |
231 |
150 |
288 |
327 |
287 |
25 |
25 |
Ø364 |
318 |
750 |
|
HF-22H |
604 |
385 |
460 |
245 |
150 |
283 |
365 |
325 |
25 |
25 |
Ø364 |
418 |
878 |
|
HF-33H |
728 |
453 |
538 |
289 |
198 |
375 |
413 |
371 |
25 |
25 |
Ø448 |
418 |
956 |
|
HF-45H |
808 |
488 |
570 |
306 |
250 |
418 |
455 |
395 |
25 |
25 |
Ø516 |
418 |
988 |
